Car Dismantling Shear
The eficiency of independent research and development of large-flow acceleration valve is 1.2-1.5 times higher thantraditional control devices.
The use of imported motors and high-quality rotary mechanisms improves the life of the rotary device and the stability of the System. lt can rotate 360'degrees freely.
To use imported HARDOX wear-resistant steel, light texture, high strength, strong wear resistance.
Large cylinder design,strong shear force.
Concave-convex structure of the teeth can effectively clampthe disassemble objects, sothe shear can be widely used large automotive and in hydraulic container demolitionand decomposition.
The high tailor-made strength alloy blade adopts a special fixing method, so the blade can be easily removed and also ensurethe cutting strength.
| Specifications | JWB20 | |

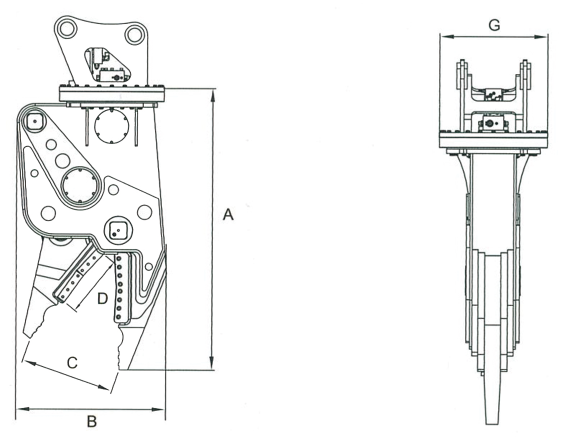

| Outline Dimension (mm) | A | 1950 |
| B | 1055 | |
| C | 660 | |
| D | 450 | |
| G | 735 | |
| Opening Width (mm) | 660 | |
| Total Weight (kg) | 2050 | |
| Cutting Force (Max) (kn) | 2480 | |
| Closing Working Pressure (kg/c㎡) | 300-350 | |
| Closing Working Flow (lpm) | 180-240 | |
| Rotating Working Pressure (kg/c㎡) | 120-160 | |
| Cuttinmg Oil Port | 40-60 | |
| Rotating Oil Port | G1‘ | |
| Suitable Carrier(ton) | G3/8" | |
| Working Mode | Hydraulic rotation ,360° free rotation | |
