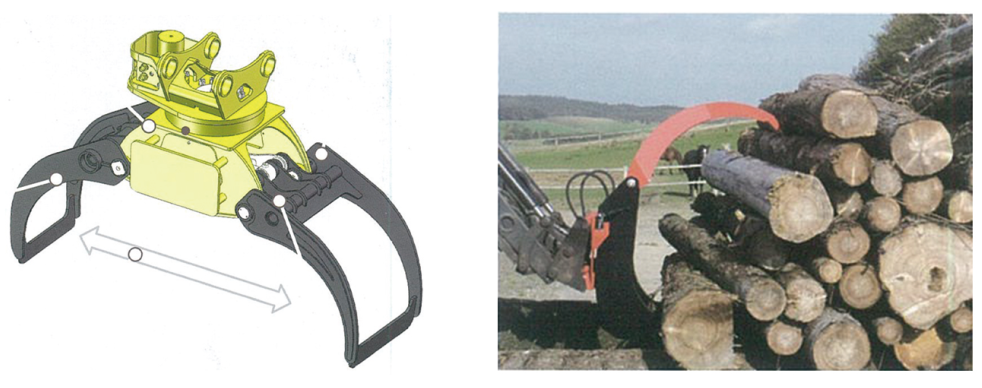

Log Grapple
The imported motor and high-guality rotation mechanism are used to improve the life time of the rotating device and the stability of the system.lt can rotate in 360 degrees freely.
Using imported HARDOX wear-resistant steel,it has the characteristics of light weight, high strength and strong wear resistance.
A variety of gripping teeth with different functions can be applied to different grabbing working conditions.
It has the characteristics of minimum weight but maximum grab opening width, compared to the same level equipment.
To use a special large-capacity oil cylinder to enhance the grasping force, and to prevent the oil cylinder fails during the grabbing process, the safety valve of the oil cylinder is designed to increase the product safety.
The single-cylinder and double-claw linkage mechanism can accuratelygrab small items such as logs and sugarcane with high grasping efficiency.
Specifications
| Specifications | JWB03 | JWB06 | |

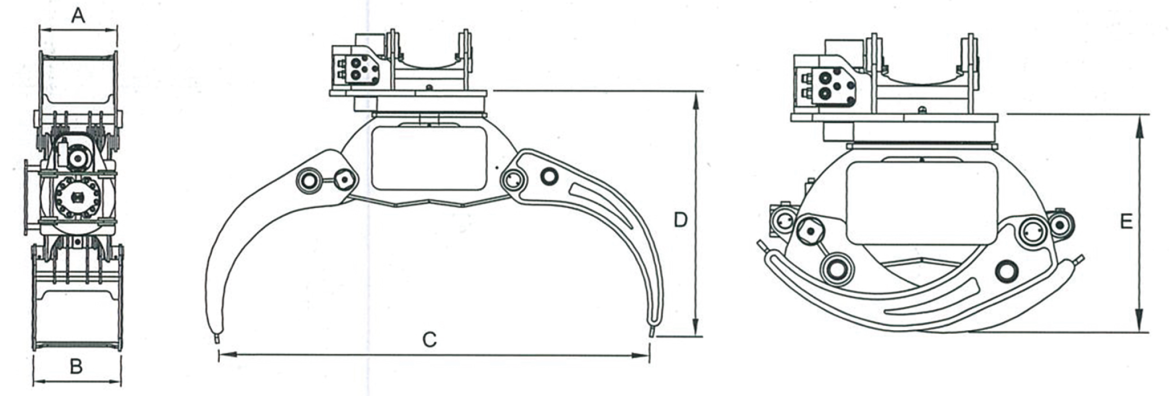

| Outline Dimension (mm) | A | 415 | (In Developing) |
| B | 475 | ||
| C | 1500 | ||
| D | 1155 | ||
| E | 580 | ||
| Weight (kg) | 360 | 730 | |
| Operation Pressure(Closed) (kg/cm2) | 150-170 | 160-180 | |
| Operation Flow (Closed) (L/min) | 90-110 | 100-140 | |
| Operation Pressure (Rotating) (kg/cm2) | 110-140 | 140-160 | |
| Operation Flow (Rotating) (L/min) | 30-50 | 30-50 | |
| Grab Weight (kg) | 1500 | 2000 | |
| Suitable Carrier (ton) | 5-10 | 12-16 | |
