Stone Grapple/Wood Grapple
The design of large capacity cylinders with ahydraulic balance system ensures the durability of grabbing.
The imported motors and high quality rotary mechanism improve the life time of rotary device, the stability of the system andcan 360° degrees rotate freely.
The motor adopts doublebal-ance control hydraulic system design to reduce the impact on the moter.
A variety of different functions of the teeth can be applied to different grabbing working conditions.
To use imported HARDOX wear-resistant steel, with light weight, high strength strong wear resistance.
Specifications
| Specifications | JWB06 | JWB06 | JWB06 | |

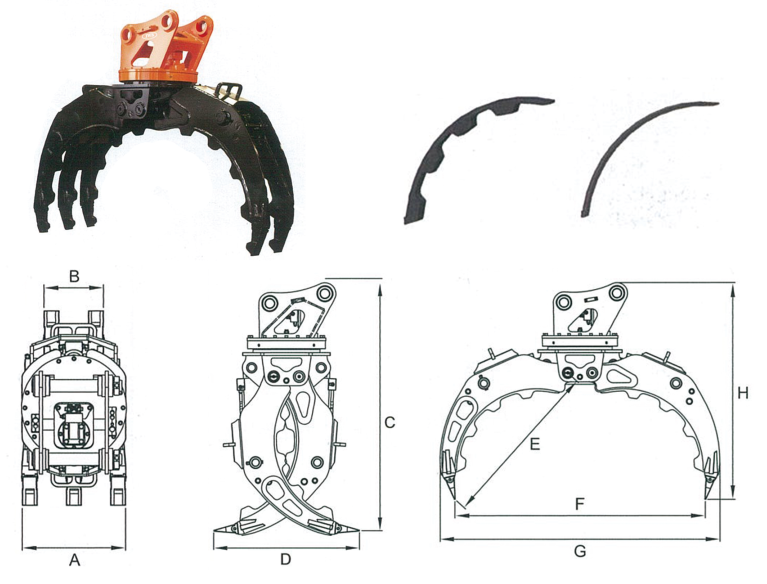

| Outline Dimension (mm) | A | 420 | 420 | 550 |
| B | 240 | 240 | 320 | |
| C | 1270 | 1250 | 1730 | |
| D | 680 | 695 | 735 | |
| E | 886 | 916 | 1115 | |
| F | 1300 | 1400 | 1800 | |
| G | 1410 | 1520 | 1950 | |
| H | 1175 | 1145 | 1525 | |
| Max Opening Width (mm) | 1300 | 1400 | 1800 | |
| Total Weight (kg) | 350 | 390 | 740 | |
| Closing Working Pressure (kg/cm2) | 110-140 | 120-160 | 150-170 | |
| Closing Working Flow(lpm) | 30-55 | 50-100 | 90-110 | |
| Rotating Working Pressure (kg/cm2) | 60-90 | 60-90 | 140-160 | |
| Rotating Working Flow(lpm) | 30-50 | 30-50 | 30-50 | |
| Unload Weight | 1500 | 2000 | 3000 | |
| Suitable Carrier (ton) | 4-6 | 7-11 | 12-16 | |
| Working Mode | Motor rotary, 360free rotation | |||
| Specifications | JWB08 | JWB10 | |
| Outline Dimension (mm) | A | 660 | 750 |
| B | 380 | 420 | |
| C | 2110 | 2230 | |
| D | 1240 | 1325 | |
| E | 1500 | 1595 | |
| F | 2300 | 2500 | |
| G | 2470 | 2790 | |
| H | 1920 | 2095 | |
| Max Opening Width (mm) | 2300 | 2500 | |
| Total Weight (kg) | 1380 | 1700 | |
| Closing Working Pressure (kg/cm2) | 160-180 | 160-180 | |
| Closing Working Flow(lpm) | 100-140 | 130-170 | |
| Rotating Working Pressure (kg/cm2) | 140-160 | 140-160 | |
| Rotating Working Flow(lpm) | 40-60 | 140-60 | |
| Unload Weight | 5000 | 8000 | |
| Suitable Carrier (ton) | 17-23 | 24-30 | |
| Working Mode | Motor rotary, 360free rotation | ||
