Hydraulic Pulverizer(Unibody Type)
The eficiency of Independent research and development of large-flow acceleration valve is 1.2-1.5 times higher thantraditional control devices.
The ultrahigh pressure hydraulic cylinder:cylinder part adopts alloy forging and advanced heat treatmentt technology, andthe compressive strength can reach 60MPa.
The special welding process of steel plate greatly improves the welding quality of the jaws.
The diversified tooth plate has dense bite, which can make small particle size crushed.
The jaw blade can be replaced and reversed at any based on an independent installation design, and the special fixing method can make the blade easily removed and also guarantee the cutting strength.
The movable jaw plate and fixed jaw plate are made of imported HARDOX steel, so the jaw plates with light weight, highare.strength and strong wear resistance.
| Specifications | JWB08 | JWB15 | |

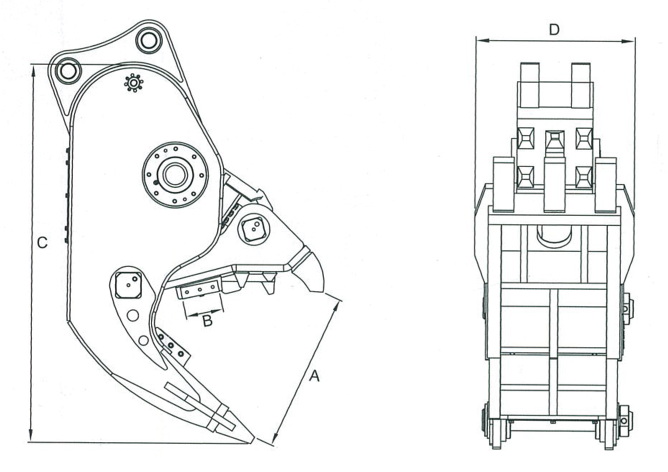

| Outline Dimension (mm) | A | 850 | 1150 |
| B | 200 | 240 | |
| C | 2012 | 2540 | |
| D | 610 | 758 | |
| Total Weight (kg) | 1850 | 3400 | |
| Cutting Force (average) (kn) | 1600 | 2870 | |
| Smash force (end) (kn) | 650 | 1150 | |
| Closing Working Pressure (kg/c㎡) | 300-350 | 300-350 | |
| Closing Working Flow (lpm) | 180-240 | 200-250 | |
| Suitable Carrier(ton) | 18-27 | 28-45 | |
| Working Mode | Unibody | ||
