Hydraulic Shear

The efficiency of Independent research and development of large-flow acceleration valveis 1.2-1.5 times higher than traditional control devices.
The crusher provides two drivemodes:hydraulic drive and mechanical drive. The crusher can provide a wide range of application and also can rotate 360° degrees freely.

The high-quality slewing mechanism greatly improves the service life time of the device and the stability of the system.

Adopt high-strength special oil cylinder, key components adopt integral forging high process,strength(pressure resistance 60Mpa).

The whole structure is made of high-strength alloy casting,and the strength is increased by1.5 times compared with the traditional plate welding structure.Specially designed triangular frame structure is stronger and more impact resistant.

The blade is made of special wear-resistant alloy, with high strength, high toughness, long life,independent installation each side could be used alternately, easyreplacement.

Specifications		JWB08	JWB15	JWB20

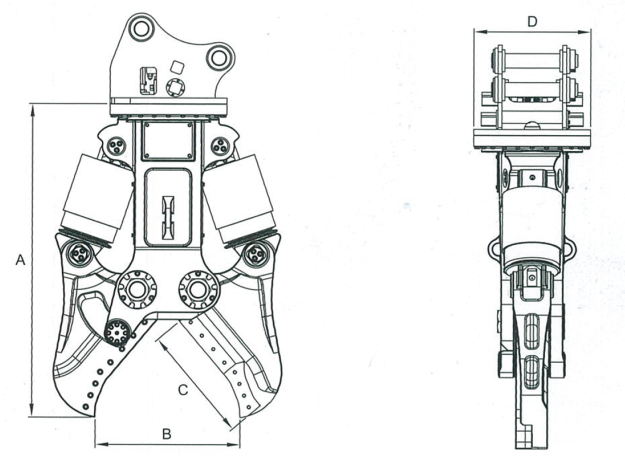

Outline Dimension (mm)	A	1188	1790	2015
	B	360	770	900
	C	380	660	730
	D	486	662	732
Weight (kg)		530	2200	2940
Shear Working Pressure(kg/c㎡)		180-250	300-350	300-350
Shear Working Flow (lpm)		50-100	140-240	180-240
Rotating Working Pressure(kg/c㎡)		60-90	140-160	140-160
Rotating Working Flow(lpm)		30-50	40-60	40-60
Cutting Oil Port		G3/4	G1"	G1"
Rotating Oil Port		G3/8	G3/8"	G3/8
Suitable Carrier(ton)		5-10	17-25	26-35
Working Mode		Hydraulic type, 360° free rotation.
