Crusher(CR Type)
The efficiency of Independent research and development of large-flow acceleration valveis 1.2-1.5 times higher than traditional control devices.
The crusher provides two drivemodes:hydraulic drive and mechanical drive. The crusher can provide a wide range of application and also can rotate 360° degrees freely.
The high-quality slewing mechanism greatly improves the service life time of the device and the stability of the system.
Adopt high-strength special oil cylinder, key components adopt integral forging high process,strength(pressure resistance 60Mpa).
The whole structure is made of high-strength alloy casting,and the strength is increased by1.5 times compared with the traditional plate welding structure.Specially designed triangular frame structure is stronger and more impact resistant.
The blade is made of special wear-resistant alloy, with high strength, high toughness, long life,independent installation each side could be used alternately, easy replacement.
| Specifications | JWB10 | JWB15 | JWB20 | |

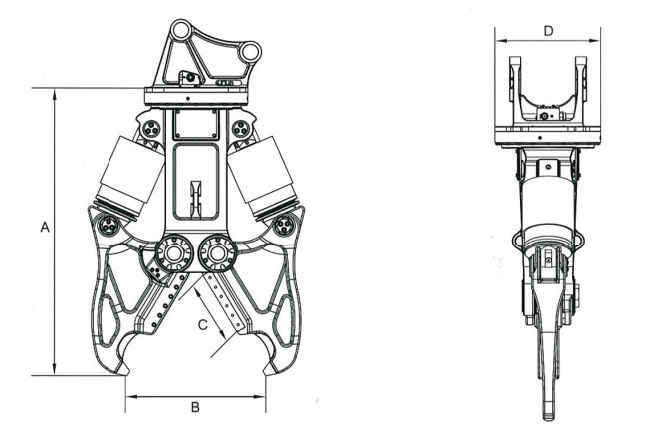

| Outline Dimension (mm) | A | 1227 | 1800 | 2043 |
| B | 620 | 950 | 1100 | |
| C | 125 | 185 | 200 | |
| D | 486 | 662 | 732 | |
| Weight (kg) | 650 | 1800 | 2570 | |
| Shear Working Pressure(kg/c㎡) | 200-300 | 300-350 | 300-350 | |
| Shear Working Flow (lpm) | 60-120 | 140-240 | 180-240 | |
| Rotating Working Pressure(kg/c㎡) | 60-90 | 140-160 | 140-160 | |
| Rotating Working Flow(lpm) | 30-50 | 40-60 | 40-60 | |
| Cutting Oil Port | G3/4 | G1" | G1" | |
| Rotating Oil Port | G3/8 | G3/8" | G3/8 | |
| Suitable Carrier(ton) | 11-16 | 17-25 | 26-35 | |
| Working Mode | Mechanical or hydraulic type,360° free rotation. | |||
