Crusher(CR Type)

The efficiency of Independent research and development of large-flow acceleration valveis 1.2-1.5 times higher than traditional control devices.
The crusher provides two drivemodes:hydraulic drive and mechanical drive. The crusher can provide a wide range of application and also can rotate 360° degrees freely.

The high-quality slewing mechanism greatly improves the service life time of the device and the stability of the system.

Adopt high-strength special oil cylinder, key components adopt integral forging high process,strength(pressure resistance 60Mpa).

The whole structure is made of high-strength alloy casting,and the strength is increased by1.5 times compared with the traditional plate welding structure.Specially designed triangular frame structure is stronger and more impact resistant.

The blade is made of special wear-resistant alloy, with high strength, high toughness, long life,independent installation each side could be used alternately, easy replacement.

Specifications		JWB10	JWB15	JWB20

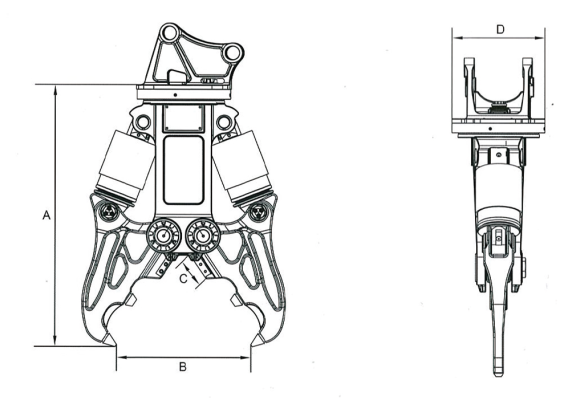

Outline Dimension (mm)	A	1227	1800	2043
	B	620	950	1100
	C	125	185	200
	D	486	662	732
Weight (kg)		650	1800	2570
Shear Working Pressure(kg/c㎡)		200-300	300-350	300-350
Shear Working Flow (lpm)		60-120	140-240	180-240
Rotating Working Pressure(kg/c㎡)		60-90	140-160	140-160
Rotating Working Flow(lpm)		30-50	40-60	40-60
Cutting Oil Port		G3/4	G1"	G1"
Rotating Oil Port		G3/8	G3/8"	G3/8
Suitable Carrier(ton)		11-16	17-25	26-35
Working Mode		Mechanical or hydraulic type,360° free rotation.
