Straight check valve, one-way unload-ing of the pump body pressure ensurethe normal operation of the motor. The conjunction of the flow control valve and relief valve can adjust the flow within the appropriate flowrange to ensure the speed of vibration, can be suitable for excavators with different flow rates.
High strength vibration plate can ensure the service life time of hydrau-lic compactor.
The adoption of high elastic rubber damper can reduce excavator reso-and increase equipment service life time.
Imported motor improves the service lifetime and stability of power box body.
| Specifications | JWB02 | JWB03 | JWB04 | |

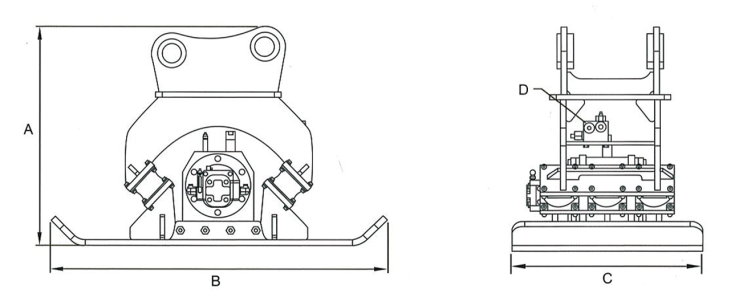

| Outline Dimension (mm) | A | 617 | 780 | 780 |
| B | 760 | 1135 | 1135 | |
| C | 420 | 550 | 550 | |
| D | PF1/2” | PF1/2” | PF1/2” | |
| Weight (kg) | 192 | 380 | 550 | |
| Working Pressure(bar) | 40-100 | 80-120 | 90-130 | |
| Punch (Kn) | 25 | 35 | 40 | |
| Working Flow (lpm) | 30-50 | 50-70 | 60-80 | |
| Vibration Frequency (vpm (max)) | 2700 | 2700 | 2000 | |
| Suitable Carrier (ton) | 1-3 | 4-6 | 7-10 | |
| Specifications | JWB06 | JWB08 | JWB10 | |
| Outline Dimension (mm) | A | 942 | 1076 | 1076 |
| B | 1246 | 1620 | 1620 | |
| C | 750 | 900 | 900 | |
| D | PF3/4” | PF1” | PF1” | |
| Weight (kg) | 870 | 1180 | 1300 | |
| Working Pressure(bar) | 100-140 | 150-180 | 150-180 | |
| Punch (Kn) | 80 | 150 | 160 | |
| Working Flow (lpm) | 80-120 | 100-170 | 120-210 | |
| Vibration Frequency (vpm (max)) | 2000 | 2000 | 2000 | |
| Suitable Carrier (ton) | 11-16 | 17-23 | 24-35 | |
