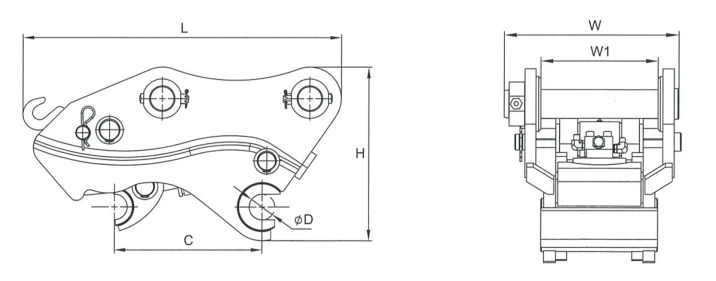

Outline Dimension
Specifications
| Specifications | JWB02 | JWB03 | JWB04 |
| Total Length L (mm) | 370-420 | 400-450 | 550-590 |
| Total Length H (mm) | 255-300 | 230-280 | 300-380 |
| Total Length w (mm) | 150-200 | 210-250 | 240-300 |
| Centre Distance (mm) | 85-180 | 170-245 | 245-300 |
| Arm Width (mm) | 90-120 | 110-160 | 150-230 |
| Pin Diameter (mm) | φ25-φ30 | φ35-φ40 | φ45 |
| Hydraulic Pressure (kg/c㎡) | 30-150 | 30-150 | 30-150 |
| Hydraulic Flow(L/min) | 10-30 | 10-30 | 10-30 |
| Weight(kg) | 20-30 | 35-50 | 60-80 |
| Suitable Carrier(ton) | 1-2 | 2.5-4 | 5-6.5 |
| Specifications | JWB05 | JWB06 | JWB08 |
| Total Length L (mm) | 610-650 | 800-860 | 1000-1050 |
| Total Length H (mm) | 310-390 | 415-510 | 500-580 |
| Total Length w (mm) | 300-385 | 360-420 | 450-560 |
| Centre Distance (mm) | 290-360 | 350-420 | 400-510 |
| Arm Width (mm) | 220-280 | 250-320 | 300-390 |
| Pin Diameter (mm) | φ50-φ55 | φ60-φ70 | φ80-φ85 |
| Hydraulic Pressure (kg/c㎡) | 300-150 | 30-150 | 30-200 |
| Hydraulic Flow(L/min) | 10-30 | 10-30 | 10-30 |
| Weight(kg) | 90-120 | 200-260 | 340-380 |
| Suitable Carrier(ton) | 7-10 | 11-17 | 18-26 |
| Specifications | JWB09 | JWB10 | JWB12 |
| Total Length L (mm) | 1080-1150 | 1150-1250 | 1250-1350 |
| Total Length H (mm) | 550-615 | 595-650 | 600-660 |
| Total Length w (mm) | 530-640 | 580-650 | 630-700 |
| Centre Distance (mm) | 500-580 | 570-600 | 590-650 |
| Arm Width (mm) | 350-420 | 4001-450 | 450-500 |
| Pin Diameter (mm) | φ90-φ95 | φ100-φ110 | φ110-φ130 |
| Hydraulic Pressure (kg/c㎡) | 30-200 | 30-200 | 30-200 |
| Hydraulic Flow(L/min) | 10-30 | 10-30 | 10-30 |
| Weight(kg) | 530-580 | 700-760 | 750-850 |
| Suitable Carrier(ton) | 26-35 | 36-40 | 40-50 |
Keywords
Quick coupler Hydraulic type(welding)
Mechanical equipment will produce vibration and shock when working, and the coupler can protect the mechanical equipment and extend the life of the equipment through its elastic cushioning effect.
